Guidance Management System
Guidance Management System
An intelligent parking guidance system ANPR cameras and ultrasonic sensors with RGB LEDs to offer real-time occupancy, "find my car" features, and robust management data.
Features

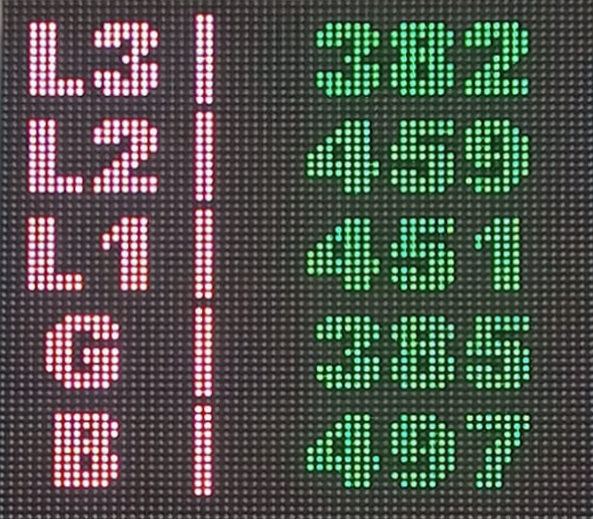

Main Entry Screen
Multi-level LED parking guidance display showing up to 5 floors. Left column lists parking levels in red with clear vertical separators. Right column shows the number of available spaces in bright green. High-contrast LED dots ensure excellent visibility from a distance. Designed for real-time parking management and easy driver navigation.
DataSheet.png)

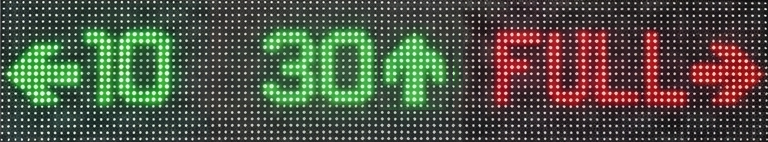

Trouble Region Screen
A three-zone color LED parking guidance screen with clear visual separation. The left zone displays available spaces with an arrow and number, while the middle and right zones display remaining spaces with a number and arrow. Remaining spaces are shown in green, and "full" spaces are shown in red.
DataSheet

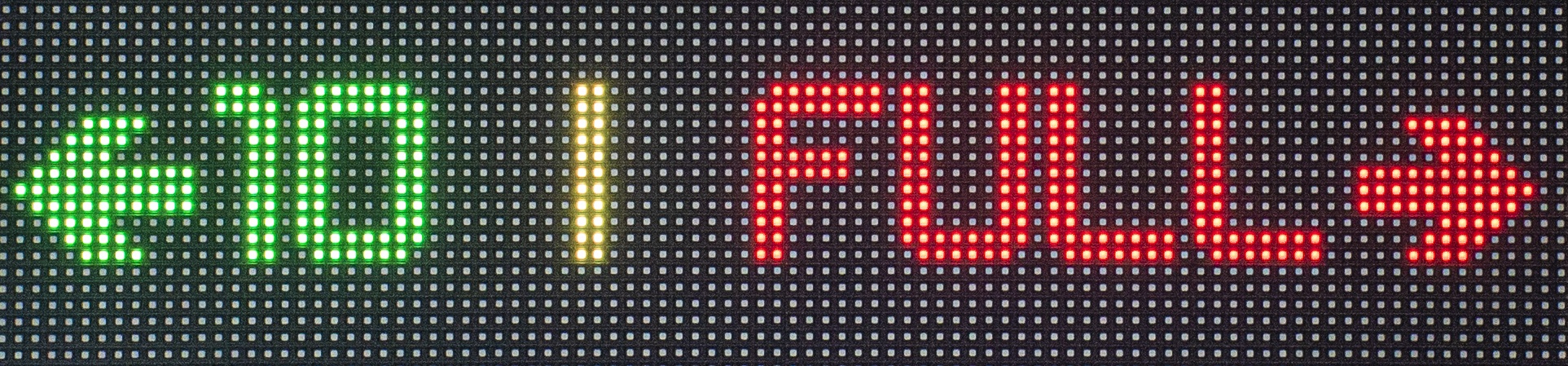

Double Region Screen
A double-zone color LED parking guidance screen with clear visual separation. The left zone displays available spaces with an arrow and number, while the right zones display remaining spaces with a number and arrow. Remaining spaces are shown in green, and "full" spaces are shown in red.
DataSheet.png)

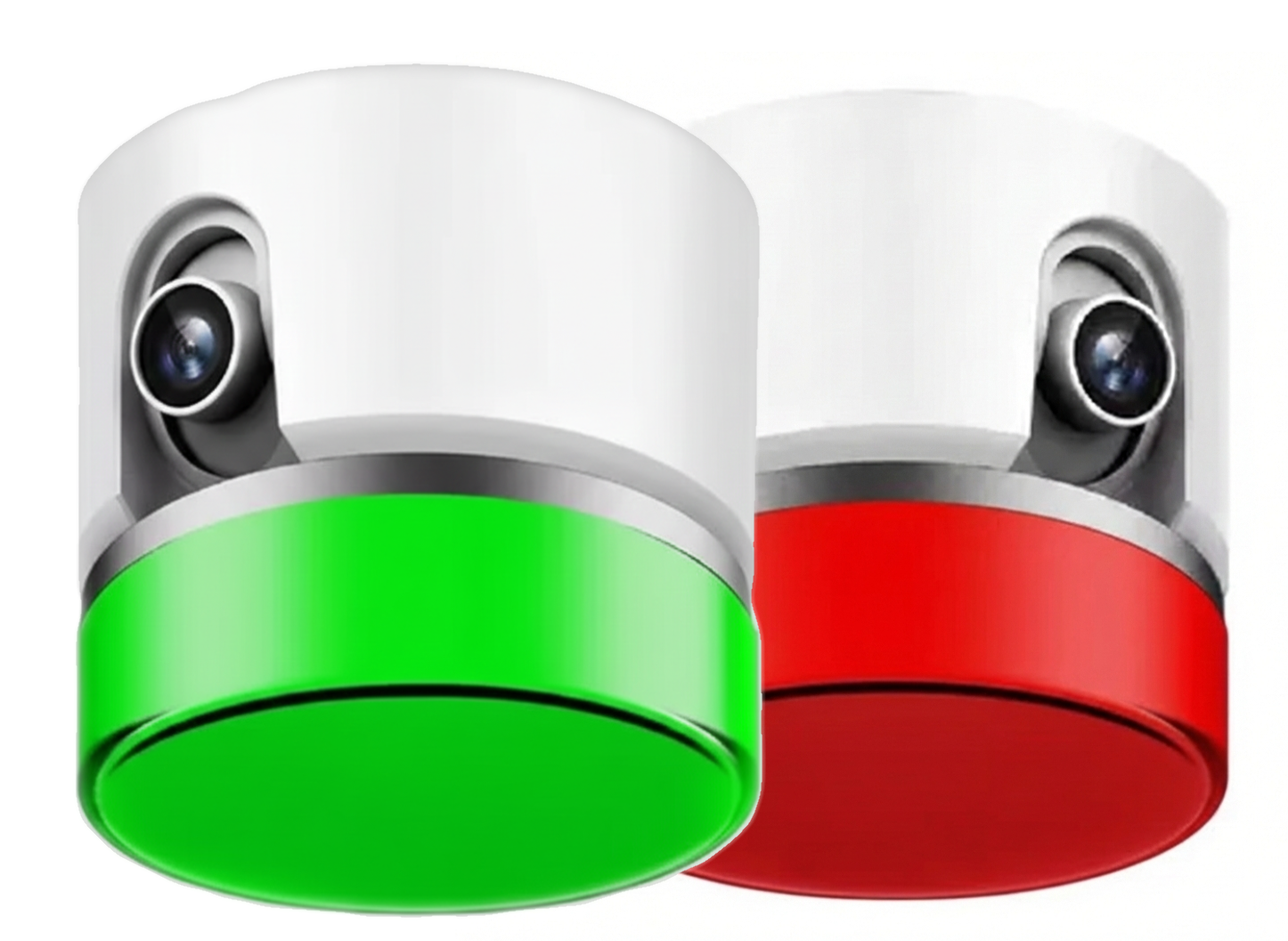

Smart Guidance (By ANPR Cameras)
ANPR is a technology that uses optical recognition to read letters and numbers from license plates captured by security cameras. It helps build a powerful database that can be referenced when needed, providing detailed and comprehensive reports for each car and its owner. A photo of the license plate is taken, and the visitor is registered and linked to their vehicle in case of repeated visits. The exact time and date of each car’s entry are recorded, allowing administrators to track which vehicles entered during a specific period.
DataSheet

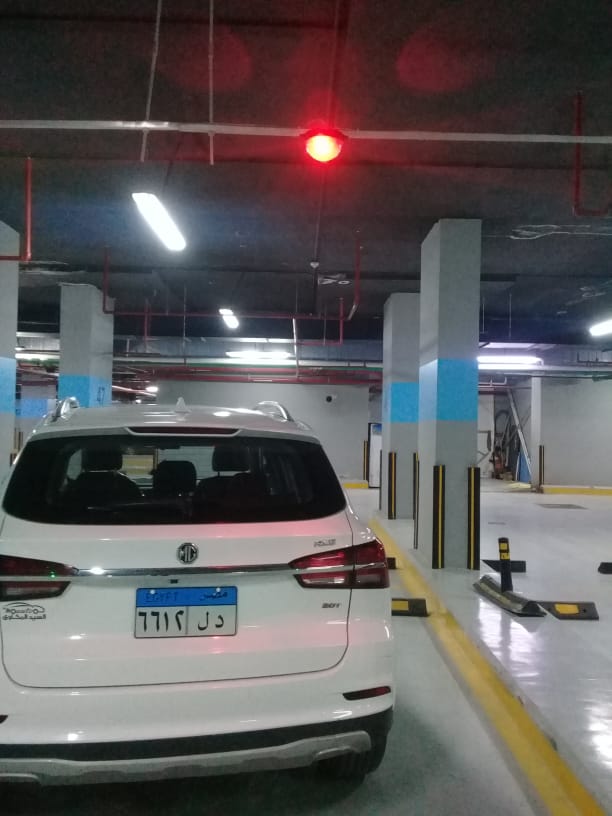

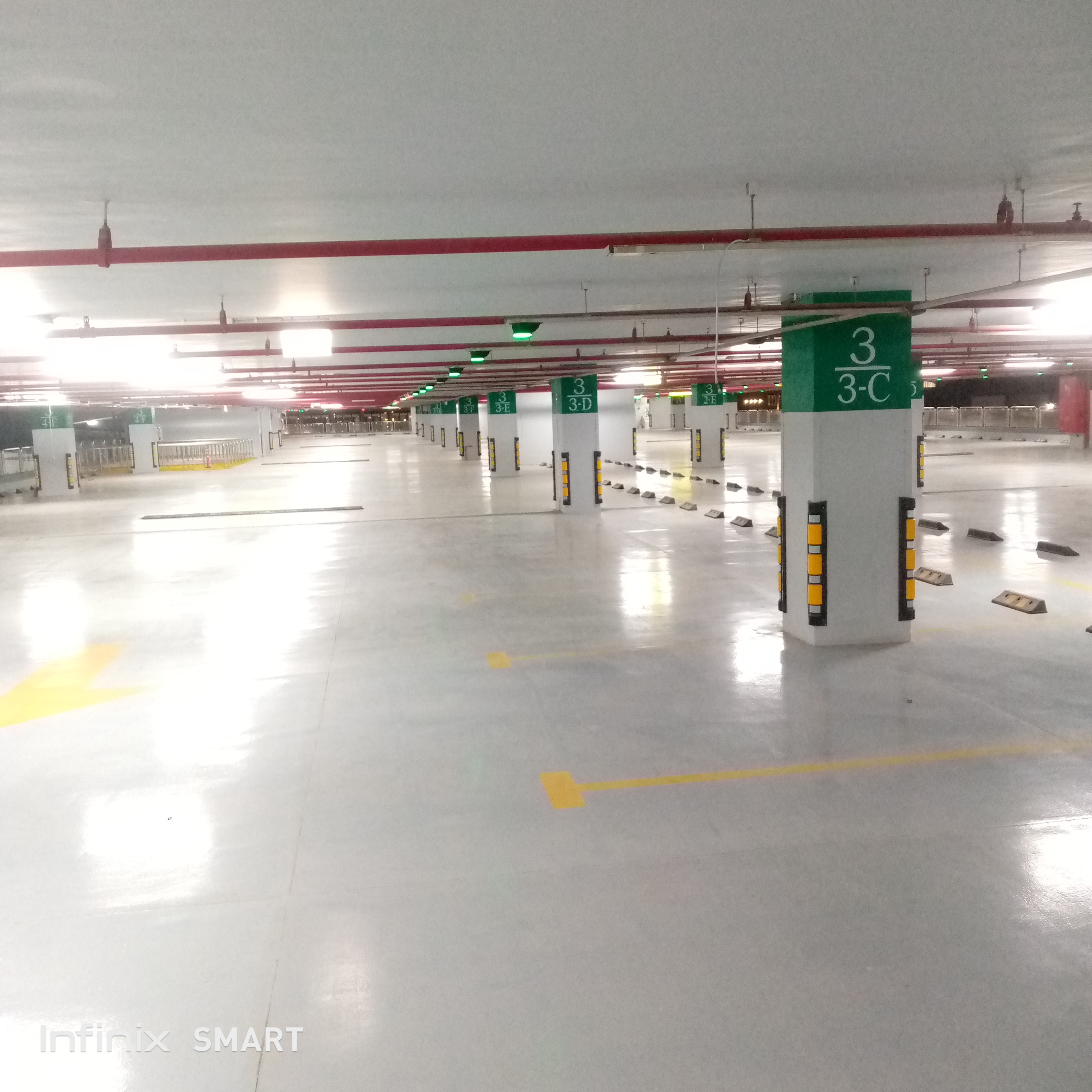

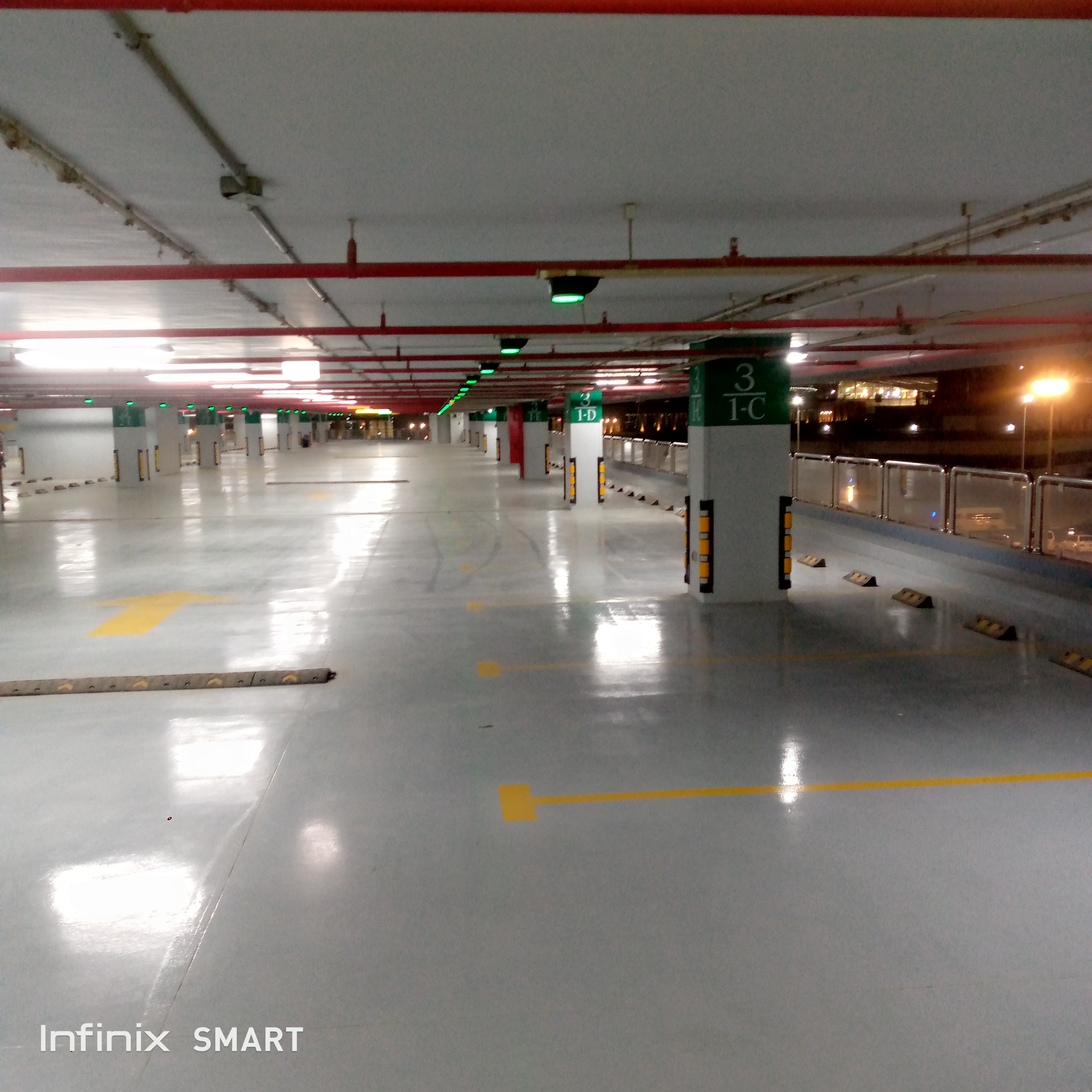

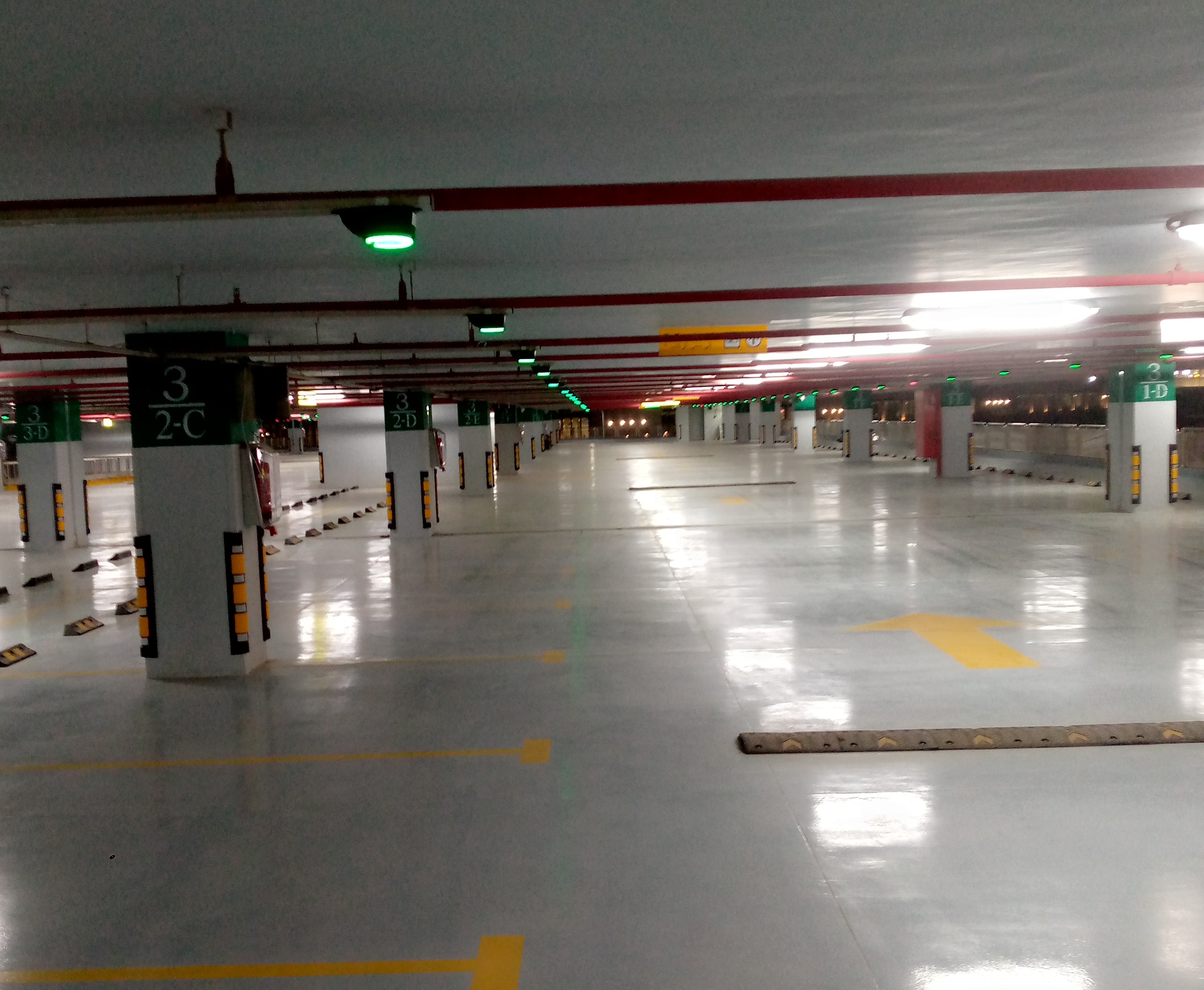

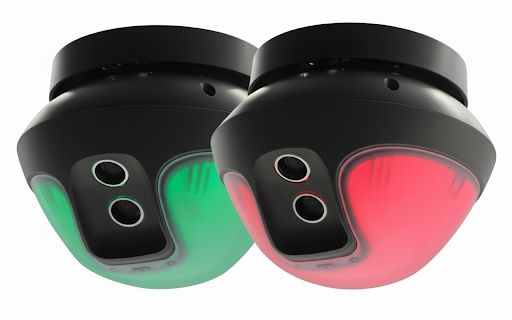

Smart Guidance (By Ultrasonic Sensor)
The Parking Guidance System (PGS) uses intelligent IoT servers connected via Ethernet to the main control board through RS485 wiring to communicate with sensors. It is based on ultrasonic sensors and equipped with RGB LED indicators that help drivers easily find vacant parking spaces in real-time and send reports to management. This system reduces the time needed to find a parking space by up to 40%, maximizes car park usage by making all spaces visible to drivers, lowers the labor required to manage the garage, and uses RGB sensors and screens for enhanced guidance.
DataSheet
